1. Product Introduction
1.1 Product Description

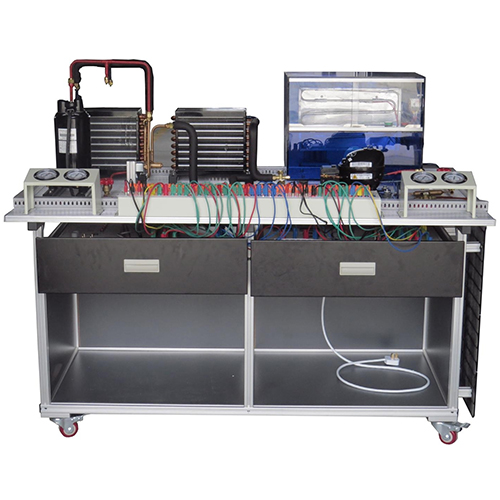

This device is a practical training equipment designed for refrigeration-related majors. Based on the technical characteristics of air conditioner and refrigerator repair in the refrigeration industry, it is designed for the electrical control and refrigeration system installation and repair of air conditioners and refrigerators, and improves comprehensive professional skills such as air conditioner and refrigerator system piping installation, electrical wiring, debugging, fault diagnosis and repair.
1.2 Product Features
Using this equipment for project training can test students' teamwork, planning and organization skills, refrigeration system installation and debugging skills, electrical control circuit repair skills, communication skills, professional competence, and safety awareness.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: Single-phase three-wire AC 220V ±5% 50Hz
2.2 Dimensions and weight
Dimensions: 1630mm*900mm*1355mm
Weight: ＜100kg


3. Product component names and function introduction
3.1 Product main part
No.    Name    Quantity
1    Air conditioning cooling section    1
2    Refrigerator cooling section    1
3    Air conditioning control section    1
4    Refrigerator control section    1
5    Frame    1
6    Cast    4
3.2 Product air conditioning and cooling part
No.     Name    Quantity
1    Compressor    1
2    Condenser    1
3    Evaporator    1
4    Low-pressure gauge    1
5    High-pressure gauge    1
3.3 Product refrigerator cooling part
No.    Name    Quantity
1    Compressor    1
2    Refrigerator    1
3    Condenser    1
4    High-pressure gauge    1
5    Low-pressure gauge    1
6    Compressor    1
7    Refrigerator    1
8    Condenser    1
3.4 Product accessories
No.    Name    Quantity
1    Portable Welding Torch 2L Handheld Welding Torch Set    1
2    Rotary Vane Vacuum Pump TW-1A    1
3    Expander/Reamer Set (Plastic Housing) CT-2000    1
4    Cutter CT-274    1
5    Dual Gauge Valve CT-536GF/S    1
6    Liquid Filler Tube CT-336 1.5m    2
7    Connectors (External Imperial, Internal Metric)    3
8    Pipe Bender CT-368-90° (Suitable for 1/4″, 5/16″, 3/8″ Copper Pipes)    1
9    Adjustable Wrench 12 inch 300mm Opening 35mm    2
10    Extended Hex Wrench (9 Pieces)    1
11    4mm electrical safety connection cable 1m Double-ended Green    15
12    4mm electrical safety connection cable 1m Double-ended Blue    15
13    4mm electrical safety connection cable 1m Double-ended Red    10
14    2mm Banana Plug Safety Type/Black    10
15    2mm Banana Plug Safety Type/Red    10
16    Air Conditioner Remote Control    1
4.List of product teaching experiments (see experiment manual for details)
(1) Air conditioning refrigeration experiment
(2) Refrigerator refrigeration and defrosting experiment
